The Largest Stockist of Conveyor Belting in Southern Africa
Conveyor Belting Hero Image

Conveyor Belting

Conveyor Belting Products

Conveyor Belting Products Overview

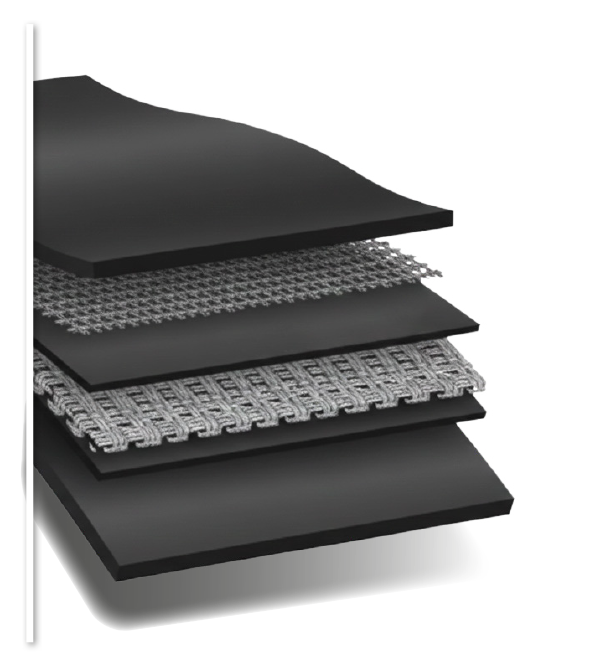

Belt Construction

A standard rubber conveyor belt consists of a rubber cover, carcass, and rubber skim coats. Reinforced fabrics are incorporated to enhance strength and durability.

Rubber cover belt construction

Rubber Cover

Our rubber covers are manufactured in accordance with BS 490, DIN 22102 & SANS 1173:2024. Natural or synthetic rubber covers are designed to protect the carcass from abrasion, impact, deterioration, and other damaging influences. Compounds are formulated to suit specific service conditions, including abrasion resistance, oil resistance, heat resistance, fire resistance, chemical resistance, and antistatic properties.

The most suitable rubber is selected based on the type and size of material being conveyed, as well as operating conditions such as impact height, impact conditions, belt life, etc.

Download Data Sheet download

Carcass

The carcass provides the belt’s tensile strength and supports the conveyed load. It consists of multiple plies of rubber-impregnated fabric that are bonded together using friction and skim coats. The most commonly used fabrics are polyester and nylon.

Download Data Sheet download
Carcass belt construction

Rubber skim coats

Rubber skim coats are compounded layers between plies that increase belt life and elasticity, ensuring strong fabric adhesion and preventing ply separation. Generous inter-ply rubber also improves impact absorption.

Breaker fabric

This is a specially woven fabric layer placed between the cover and carcass to enhance impact resistance, load support, and tear resistance.

Manufacturing Partner

Our manufacturing partner is a privately funded enterprise that was established in 1986. The business is recognized as a leading conveyor belt manufacturer in China, distinguishing itself as a market leader among more than 80 competing manufacturers. Their quality standards conform to international benchmarks, including viz DIN (German) and J.I.S. (Japanese) specifications. This is further supported by their ISO 9001 certification, which they received in 1996.

With an annual production capacity of approximately 3,000,000 metres, the factory also boasts the widest belt production of steel-cord in China at 2,500mm. This level of capacity is matched or exceeded only by a select group of global leaders, including Phoenix (Germany), Continental (Germany), Brando (Japan), Yokohama (Japan), and Bridgestone (Japan).

Conveyor Belt Range

conveyor_belt

General Purpose Conveyor Belt

Two cover qualities are available for abrasive materials under average or severe working conditions.

View Product Enquire
conveyor_belt

Fireflex Conveyor Belt

Flame-retardant and antistatic PVC/PVG solid woven conveyor belting.

View Product Enquire
conveyor_belt

Thermal Heat Conveyor Belt

Heat-resistant conveyor belting for hot materials and high-temperature applications.

View Product Enquire
conveyor_belt

Pipe Conveyor Belt

Enclosed conveyor belting for clean, safe and contained material transport.

View Product Enquire
conveyor_belt

Chevron Conveyor Belt

Patterned conveyor belting for inclined conveying applications.

View Product Enquire
conveyor_belt

Steel Cord Conveyor Belt

High-strength conveyor belting for long-distance material transport.

View Product Enquire
conveyor_belt

Fire Retardant Conveyor Belt

A belt option for environments where fire resistance is a priority.

View Product Enquire
