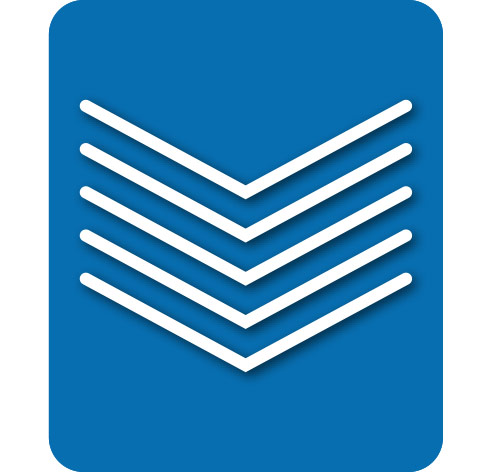

Type
V6
- Cleat height
- 6 mm
- Cleat width
- 400 - 1000 mm
- Pitch
- 80 mm
- Belt width
- 500 - 1200 mm
The Largest Stockist of Conveyor Belting in Southern Africa
Conveyor Belting
Chevron Conveyor Belt
Applications
Chevron conveyor belts are designed to convey powdered, granulated, and small lump materials at gradients of up to 40 degrees. They are also suitable for conveying packaged goods.
Shape and Characteristics
- Available in various pattern designs, including those with "U" and "V" profiles.
- Patterned conveyor belts are composed of a belt carcass and a pattern. The pattern shape and height (depth) differ depending on the type of gradient required for the material being conveyed.
Chevron Conveyor Belt Types
Pattern options for different incline and width requirements
Use the pattern type that matches the cleat height, pitch, and belt width required for the job.

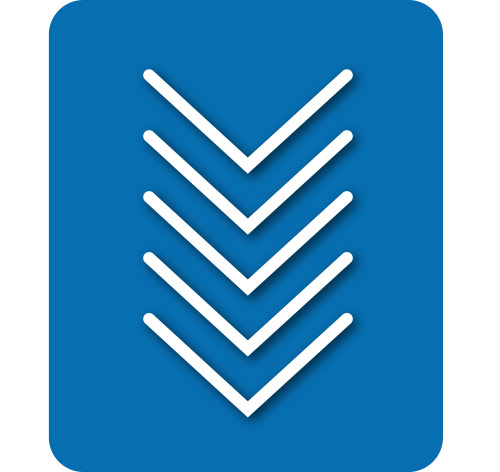

Type
V15
- Cleat height
- 15 mm
- Cleat width
- 450 mm
- Pitch
- 250 mm
- Belt width
- 500 - 1000 mm

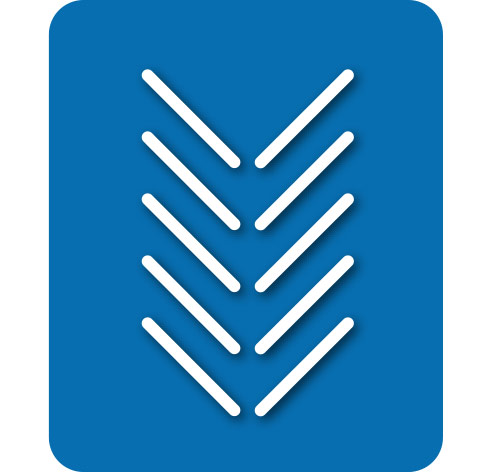

Type
Open V15
- Cleat height
- 15 mm
- Cleat width
- 500 mm
- Pitch
- 250 mm
- Belt width
- 500 - 1000 mm

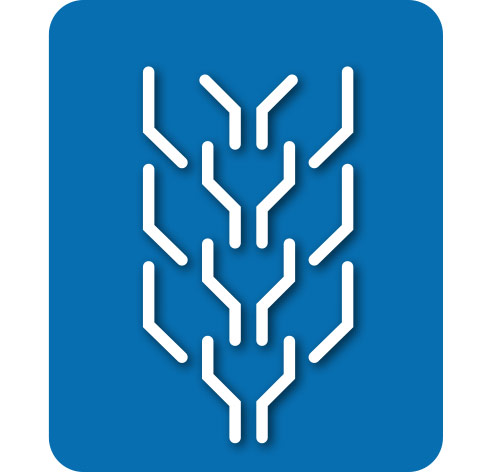

Type
Y17
- Cleat height
- 17 mm
- Cleat width
- 550 mm
- Pitch
- 330 mm
- Belt width
- 600 - 1200 mm

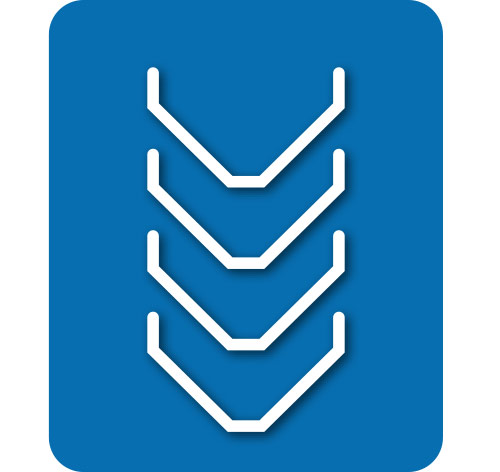

Type
C25
- Cleat height
- 25 mm
- Cleat width
- 750 mm
- Pitch
- 330 mm
- Belt width
- 900 - 1200 mm
Need help choosing the right chevron pattern?
Send us the incline, belt width, and material type and we can help match the right cleat profile for your application.
