Steel Cord Conveyor Belt

Conveyor Belting

STEEL CORD CONVEYOR BELT

STEEL CORD CONVEYOR BELT

APPLICATIONS

Steel cord conveyor belts are widely used for high-strength, long-distance, and heavy-load material transport. They are also suitable for short-distance, high-strength transportation of materials on certain occasions.

FEATURES:

  • • High tensile strength for large span, long-distance transportation of materials.
  • • Low elongation, requiring a short take-up stroke distance.
  • • Smaller drive pulley diameters due to excellent fatigue resistance.
  • • Excellent penetration of rubber between the individual cord filaments, ensuring superior adhesion.
  • • Uniform cord tension achieved through advanced manufacturing techniques.
  • • Excellent trough-ability, allowing increased load capacity and reduced spillage.
Request a Quote picture_as_pdf View Datasheet

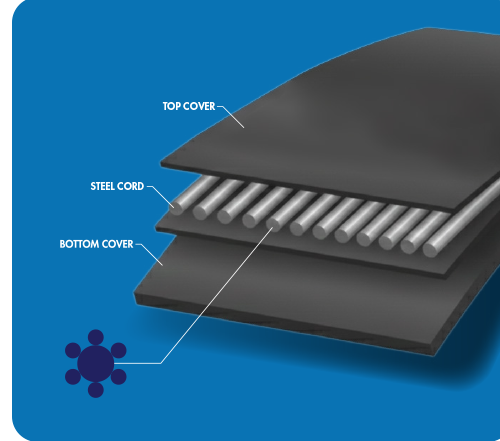

Steel cord conveyor belt construction diagram

ST NUMBER:

Guaranteed tensile strength of steel cord in kg x no. of steel cords

Belt width in cm

The ST number represents the guaranteed tensile strength of the steel cords per centimetre of belt width. Tensile strength varies according to cord diameter and pitch, allowing belts to be manufactured to suit specific operational requirements.

Maximum tension ratings indicated in the tables apply under optimal operating conditions and should be adjusted for site-specific applications. We are able to design and manufacture steel cord belts to special specifications upon request.

ST Number Breaking Strength
lbs / in
kg / cm
Maximum Tension Rating
lbs / in
kg / cm
Standard Cord Diameter
in
mm
Standard Cord Pitch
in
mm
Standard Cover Thickness In case of Standard Cover
Top Cover
in
mm
Bottom Cover
in
mm
Belt Thickness
in
mm
Belt Weight
lbs / ft²
kg / m²
ST-500
2,800
500
400
71.4
0.087
2.2
0.394
10
0.197
5
0.197
5
0.48
12.2
3.34
16.3
ST-600
3,360
600
480
85.7
0.096
2.45
0.394
10
0.197
5
0.197
5
0.49
12.5
3.46
16.9
ST-630
3,530
630
504
90
0.098
2.5
0.394
10
0.197
5
0.197
5
0.40
12.5
3.52
17.2
ST-700
3,920
700
560
100
0.106
2.7
0.394
10
0.197
5
0.197
5
0.5
12.7
3.6
17.6
ST-800
4,480
800
640
114.2
0.114
2.9
0.394
10
0.197
5
0.197
5
0.508
12.9
3.75
18.3
ST-900
5,040
900
720
128.5
0.122
3.1
0.394
10
0.197
5
0.197
5
0.516
13.1
3.67
17.9
ST-1000
5,600
1000
800
157.1
0.142
3.6
0.472
12
0.197
5
0.197
5
0.535
13.6
3.93
19.2
ST-1100
6,160
1,100
880
157.1
0.15
3.8
0.472
12
0.197
5
0.197
5
0.543
13.8
4.01
19.6
ST-1200
6,720
1,200
960
171.4
0.156
3.95
0.472
12
0.197
5
0.197
5
0.551
14
4.14
20.2
ST-1250
7,000
1,250
1,000
178.6
0.157
4
0.472
12
0.197
5
0.197
5
0.551
14
4.2
20.5
ST-1300
7,280
1,300
1,040
185.7
0.161
4.1
0.472
12
0.197
5
0.197
5
0.555
14.1
4.27
20.8
ST-1400
7,840
1,400
1,120
200
0.169
4.3
0.472
12
0.197
5
0.197
5
0.563
14.3
4.39
21.4
ST-1500
8,400
1,500
1,200
214.3
0.176
4.4
0.472
12
0.236
6
0.236
6
0.646
16.4
5
24.4
ST-1600
8,960
1,600
1,280
228.6
0.181
4.6
0.472
12
0.236
6
0.236
6
0.654
16.6
5.22
25.5
ST-1700
9,520
1,700
1,360
242.8
0.189
4.8
0.472
12
0.236
6
0.236
6
0.661
16.8
5.32
26
ST-1800
10,080
1,800
1,440
257.1
0.197
5
0.197
5
0.236
6
0.236
6
0.669
17
5.49
26.8
ST-1900
10,640
1,900
1,520
271.4
0.201
5
0.472
12
0.236
6
0.236
6
0.673
17.1
5.51
26.9
ST-2000
11,200
2,000
1,600
285.7
0.205
5.2
0.472
12
0.236
6
0.236
6
0.677
17.2
5.72
27.9
ST-2100
11,760
2,100
1,680
300
0.22
5.6
0.591
15
0.276
7
0.276
7
0.772
19.6
6.1
29.8
ST-2200
12,320
2,200
1,760
314.2
0.228
5.8
0.591
15
0.276
7
0.276
7
0.78
19.8
6.26
30.5
ST-2300
12,880
2,300
1,840
328.5
0.232
5.9
0.591
15
0.276
7
0.276
7
0.783
19.9
6.33
30.9
ST-2400
13,440
2,400
1,920
342.8
0.236
6
0.591
15
0.276
7
0.276
7
0.787
20
6.45
31.5
ST-2500
14,000
2,500
2,000
357.1
0.244
6.2
0.591
15
0.276
7
0.276
7
0.795
20.2
6.62
32.3
ST-2600
14,560
2,600
2,080
371.4
0.248
6.3
0.591
15
0.276
7
0.276
7
0.799
20.3
6.7
32.7
ST-2700
15,120
2,700
2,160
385.7
0.248
6.4
0.591
15
0.276
7
0.276
7
0.803
20.4
6.76
33
ST-2800
17,680
2,800
2,240
400
0.26
6.6
0.591
15
0.276
7
0.276
7
0.811
20.6
6.95
33.9
ST-2900
16,240
2,900
2,320
414.2
0.26
6.6
0.591
15
0.276
7
0.276
7
0.819
20.8
7.11
34.7
ST-3000
16,800
3,000
2,400
428.5
0.27
6.9
0.591
15
0.315
8
0.276
7
0.862
21.9
7.46
36.4
ST-3150
17,640
3,150
2,520
450
0.28
7.1
0.591
15
0.315
8
0.276
7
0.87
22.1
7.66
37.4
ST-3500
19,600
3,500
2,800
500
0.29
7.5
0.591
15
0.315
8
0.276
7
0.866
22.5
8.06
39.4
ST-4000
22,400
4,000
3,100
571.4
0.31
8.1
0.591
15
0.315
8
0.276
7
0.909
23.1
8.65
42.2
ST-4500
25,200
4,500
3,600
642.8
0.331
8.4
0.591
15
0.315
8
0.276
7
0.921
23.4
9.24
45.1
ST-5000
28,000
5,000
4,000
714.2
0.354
9
0.591
15
0.315
8
0.276
7
0.944
24.0
9.93
48.5

Need help matching a steel cord belt?

Share the application, belt width, operating conditions and required tension rating and we can help confirm the best steel cord specification.
